1000L / 10bbl Stainless steel Fermentation tank Fermenter for Beer Beverage Dairy

FOB Reference Price:Get Latest Price
$3,000.00 - $4,200.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Capacity (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Jinggong
Processing Types:
Alcohol
Dimension(L*W*H):
Customized
Weight:
TBD
Certification:
ISO9001, CE, PED
Warranty:
2 years
Capacity:
200L - 50,000L
Material:
SS304 or SS316L
Control:
Temperature & Pressure
Insulation:
Polyurethane/rockwool
Heating / Cooling:
Dimple jacket or Coil
Thickness:
2mm - 6mm
Pressure tolerance:
-2 bar to 8 bar
Polishing:
Less than 0.4um
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month

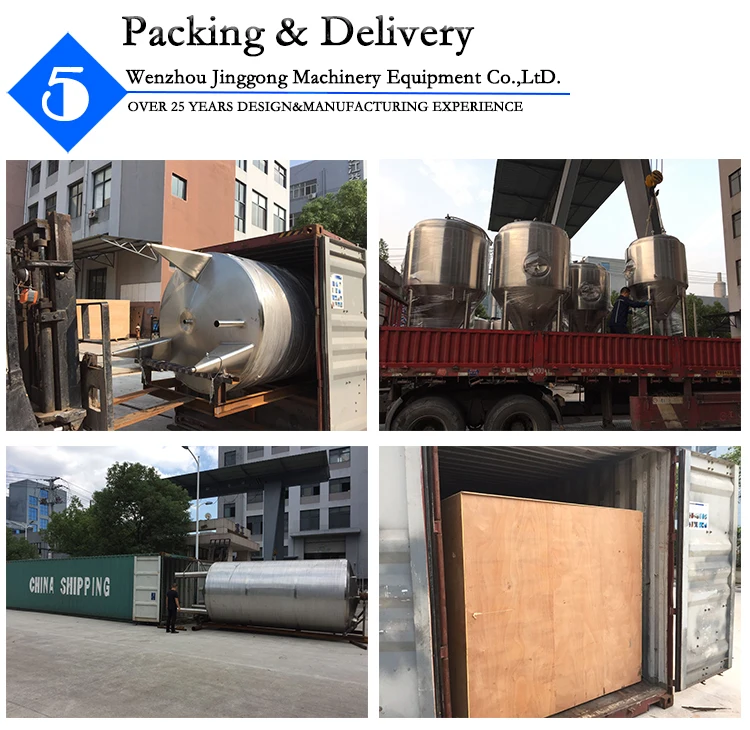

Packaging & Delivery
Packaging Details
Export Standard Packages, steel frame or wooden box
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated

 Jinggong fermentation tank / fermenter / fermentation vessel

Fermenter is available from 200L to 50,000L with an average 25% Head Space. All tank have a Dish top, Cylinder body and a 60-70° Cone Bottom. Certified stainless steel material for all tanks, with 100% TIG welded (Argon-arc welded) joints and seams with sanitary interior Polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulation. All tanks use Tri-clamp connections, are designed for up to 0.2MPa and tested at 0.4MPa (we own the Manufacture License of Pressurized Vessels). Manway on the side or on the top. CIP cleaning ball and pressure regulating valve are available. We will provide turnkey project and service to meet your space and height restrictions.
Working volume (L)Dimension D*H (mm)Total height (mm)Diameter of inlet&outlet (mm)PU insulation (mm)Manway size (mm)Inner thickness (mm)Comment
500800*80021003850440*3203All parameters can be customized according to your process & request.
10001000*120026503850440*3203
20001100*140029503850550*4303
30001200*150031505150550*4303
40001400*170039005150550*4303
50001500*210040505150550*4303
60001600*220041005150550*4303
80001800*270048005150550*4303
100002000*280049005150550*4303
200002500*360067005180550*4303
400003200*480090007680550*4304
500003500*520096007680550*4304

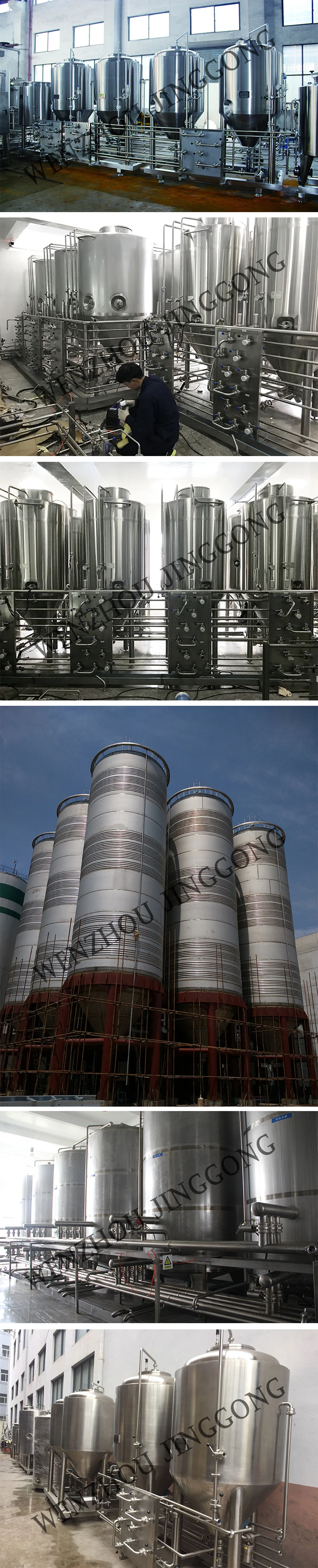

Project/product show:
